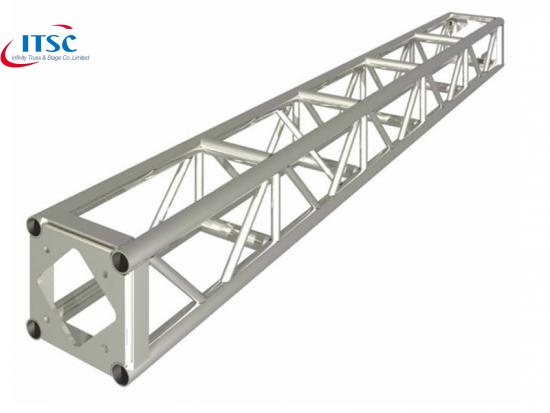

8"x8“ Aluminium Bolted Plated Mini Lighting Box Truss:
This Bolted Box Truss is made of main tube 1.18"x0.07" and brace 0.79"x0.07" equipped with Steel Bolted for free. Its Centre Point Load is 238kg at 6m span. Just with the bolts and nuts, it can be easily configurated the Bolted Roof Truss System.
Features:
- Every pics is no more than 10kg (22lbs).
- Loading capacity 238kg ( 500 lbs) at 6m span.
- Equiped with Plated Bolted System which is Cheaper at Price.
- Modular and flexible use in DJs, medias, event stages,ect.
Package Contents:
- All lengths of Bolting Truss Together required
- Sets of bolts and nuts demaned for the Steel Bolted Trusses.
Specification:
Item name | 8x8 inch High quality bolted box truss |
Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
Types | Square |
Main tubes | 1.18"x0.07" |
Braces | 0.79"x0.07" |
Connection type | Bolted Plated |
HS code |
7610900000 |
Length and Weight:
Length | Weight |
50 cm | 2.15 kg |
100 cm | 3.25 kg |
150 cm | 5.55 kg |
200 cm | 6.2kg |
250 cm | 7.55 kg |
300 cm | 9.5 kg |
Other length can be custom on request.
Application:
This Truss Bolts Price is cheaper compared with the spigoted connection one. And it is widely used for the exhibtion trade show display booth stands.
