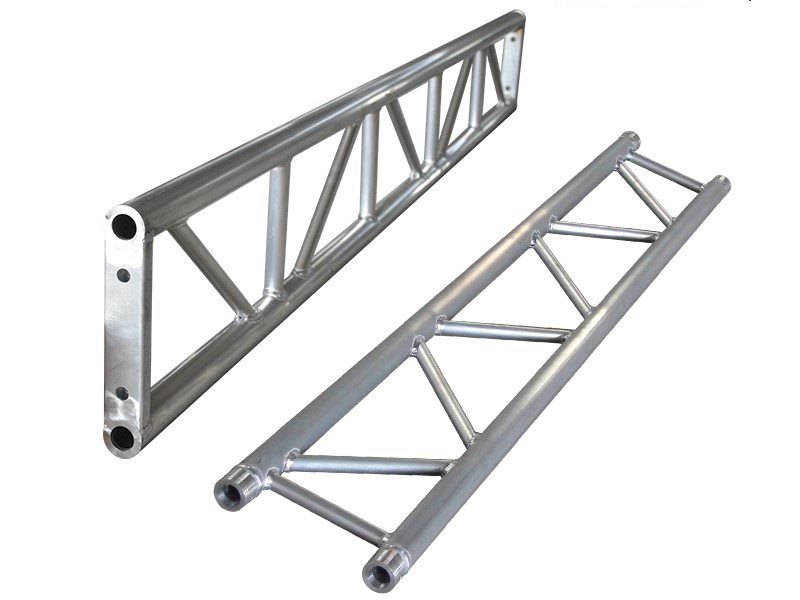

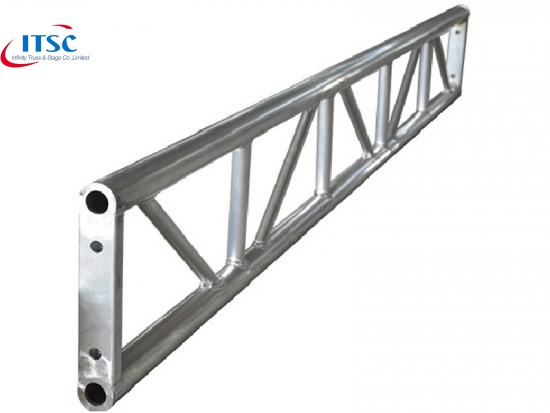

300mm Chinese Cheap Price Silver Metal Bolt Ladder Truss:
This Truss is aluminum alloy with steel bolt connection, and it features cheap price. and it can be assembled in vertical or horizontal position . It can be straight, curved and circular and usually adapted for Truss Roof Systems at cheaper price.
For this Aluminium Truss Beam, it can be 2 kinds of connection to choose:
- Steel bolt screw connection which is cheap in price.
- connical coupller with steel pin which is quick to install.
Features:
- Cheaper price compared with the spigot one.
- Modular and versatile for roof reinforcement and hire.
- Powder coating or anodizing to be any color on request.
- Free design by us.
- Lightweight for ladder framing between trusses or ending truss ladder construction.
Specification:
| Item | 50x300mm bolted plated ladder truss |
| Material | Aluminum Alloy 6061-T 6 / 6082-T 6 |
| Types | Ladder |
| Main tubes | 50 x 2 mm |
| Braces | 25 x 2 mm |
| Connection type | Bolt |
| HS code |
7610900000 |
Length and Weight:
| Length | Weight |
| 50 cm | 1.95 kg |
| 100 cm | 3 kg |
| 150 cm | 4.05 kg |
| 200 cm | 5.1 kg |
| 250 cm | 6.15 kg |
| 300 cm | 7.2 kg |
Other length can be custom on request.
Application:
This Bolt Ladder Truss is commonly applied to install the truss roof systems to support the whole pyramid roof, curved roof or arc roofs.
