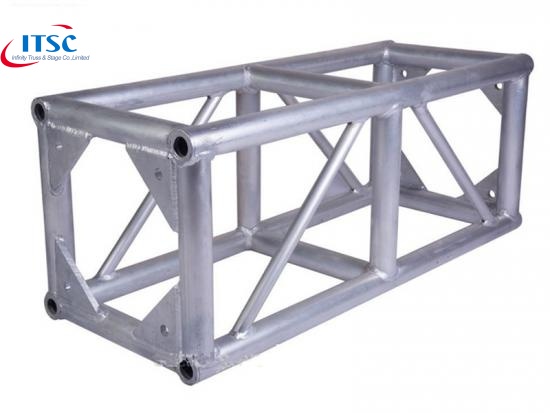

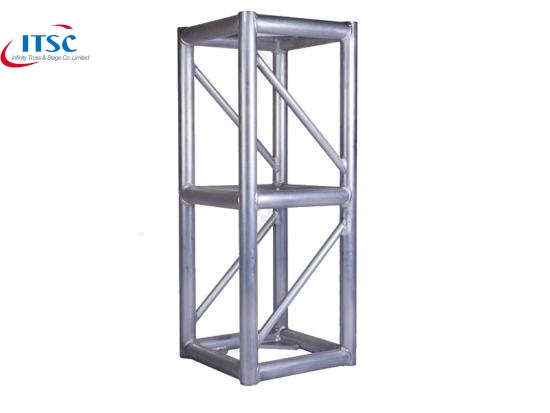

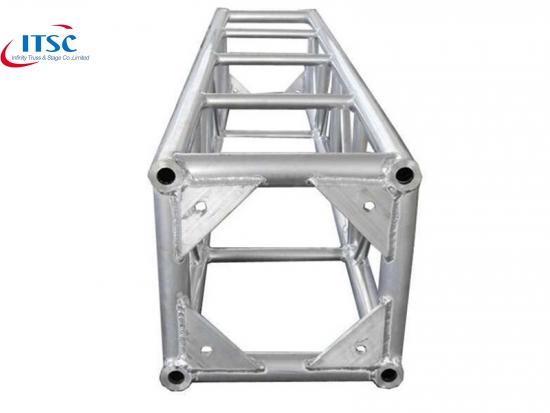

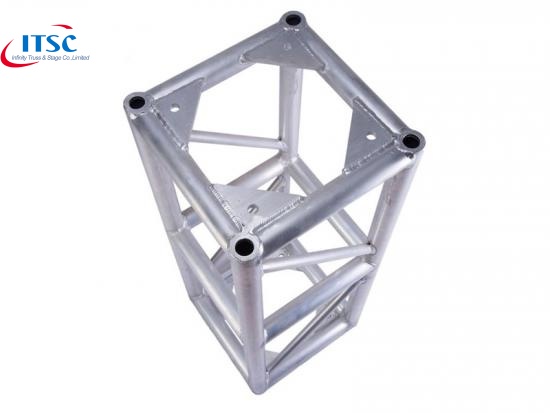

400 Medium duty bolt Square Truss Ladder:
ITSC-BS40 square box truss is medium-duty segment with Main-tube 50 x 3 mm, Sub-main tube 50 x 2 mm, Bracing 25 x 2 mm, andit offers an optimum lifting capacity and indicates the practical versatile in all kindsGround Support Truss Systemsfor concerts, exhibitions, tents, events, and other complex structures like displays or booths.

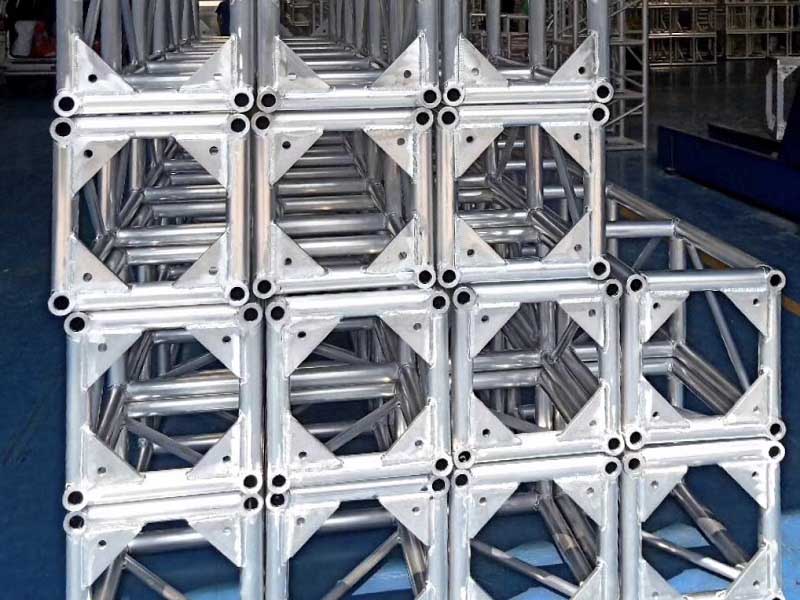

A lot of 400x400mm Box Bolt Truss in stock for sale by ITSCtruss:
Features:
- 4- point nodding.
- TUV and SGS approved.
- Free design and technology support.
- OEM and ODM acceptable.
- Powder coating and anodizing to any color without any peeling.
Specification:
| Item | 400x400mm bolted box truss |
| Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
| Types | Square |
| Main tubes | 50 x 3 mm |
| Sub-main tubes | 50 x 2 mm |
| Braces | 25 x 2 mm |
| Connection type | Bolt |
| HS code |
7610900000 |
Length and Weight:
| Length | Weight |
| 50 cm | 9.7 kg |
| 100 cm | 13.5 kg |
| 150 cm | 17.15 kg |
| 200 cm | 20.70 kg |
| 250 cm | 24.35kg |
| 300 cm | 28 kg |
Other length can be custom on request.

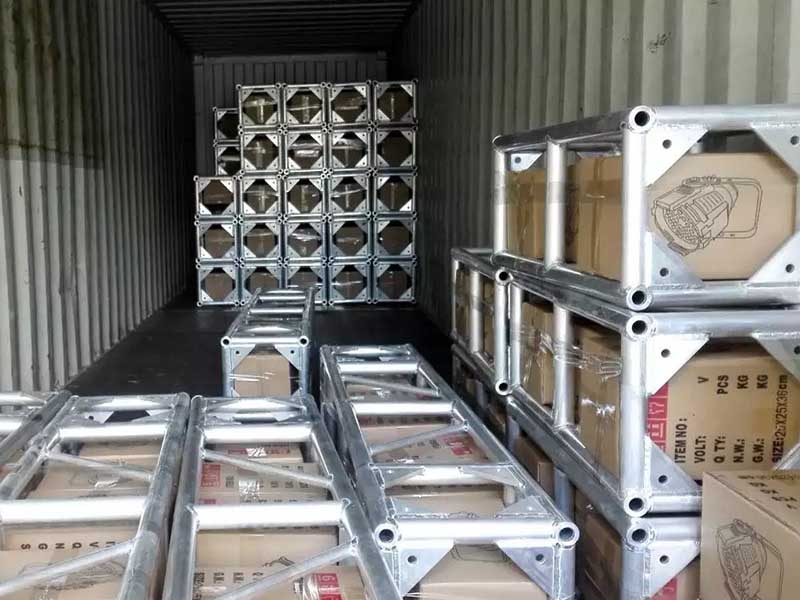

How to Pack the bolted box truss?
All the trusses are usually packed with aire bubble aire for free; carton package is also available on request. but it requies additional cost for it.
The Stage Lighting Fixtures can be put inside this box truss rigging for safe delivery.
Application:

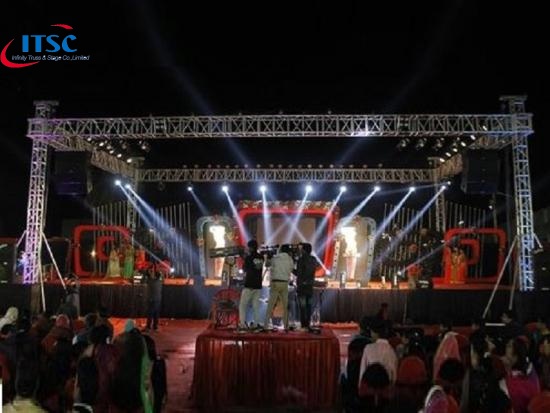

Square Truss Bridge is widely used for hire, decorations, car shows, exhibitions booths, churches, world cup events, ect.
