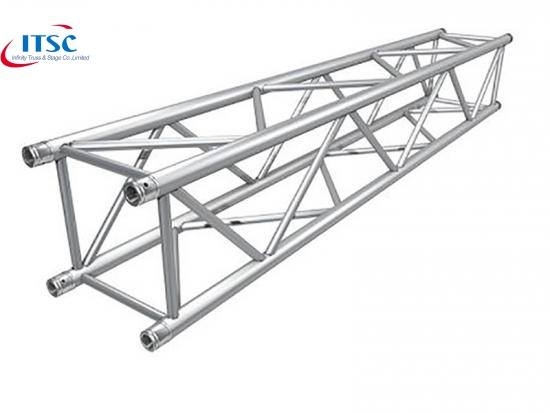

12 inch aluminum square box truss Kit for Sale:
ITSC-CSB12 Aluminium Box Truss Equipment is configurated with main tube 50x3mm and bracing 25x2mm. It offers an optimum lifting Capacity Centre Point Load 550kg at 10m Span and indicates the practical versatile in all kinds box beam truss structure for concerts stages, exhibitions, tents, events, and other complex structures like displays or booths.
Features:
- 4- point nodding
- TUV and SGS approved
- Free design and technology support
- OEM and ODM acceptable
- Powder coating and anodizing to any color without any peeling
- Global standard size and most widely used in performance
- Conical coupler connection which is quick to install
Specification:
| Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
| Types | Square |
| Main tubes | 50 x 3 mm |
| Sub-Main tube | 30 x 2 mm |
| Braces | 25 x 2 mm |
| Connection type | Conical couple system |
| HS code |
7610900000 |
Length and Weight:
| Length | Weight |
| 50 cm | 5.25 kg |
| 100 cm | 8.25 kg |
| 150 cm | 11.25 kg |
| 200 cm | 14.25 kg |
| 250 cm | 17.25 kg |
| 300 cm | 20.6 kg |
Other length can be custom on request.
Application:

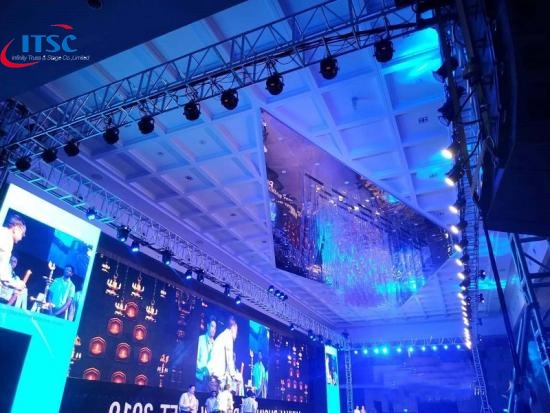

The Box Truss Beam Aluminium is widely used forconcert stagehire, decorations, car shows, exhibitions booths, churches, world cup events, studio, grid, stage rigging lighting, ect.
