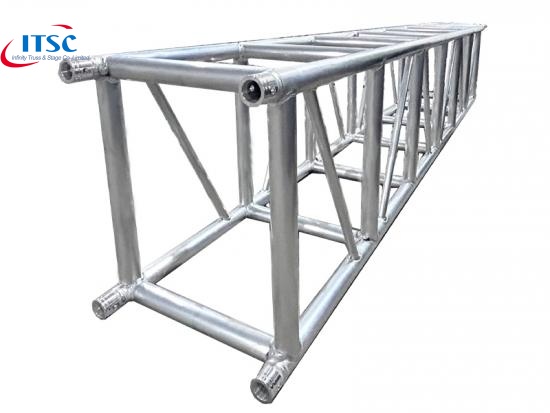

500 x 600 Rectangular Lighting Truss For Sale:
The Custom Aluminum Lighting Truss 500 x 600mm offers a longer span and stronger capacity compared with 400x600mm Squad Truss. And it can be extended to 21m span with 500kg capacity. So it is usually applied as Truss Beam in all medium Cheap Roof Trusses.
Features:
- 4- point nodding.
- TUV and SGS approved.
- Free design and technology support.
- OEM and ODM acceptable.
- Powder coating and anodizing to any color without any peeling.
Specification:
| Item | 500x600mm rectangular box lighting truss |
| Material | Aluminum Alloy 6082-T 6 |
| Types | Rectangle |
| Main tubes | 50 x 3 mm |
| Sub-Main tube | 50 x 2 mm |
| Braces | 25 x 2 mm |
| Connection type | Pin Connection |
| HS code |
7610900000 |
Length and Weight:
| Length | Weight |
| 50 cm | 8.4 kg |
| 100 cm | 12.8 kg |
| 150 cm | 17.15 kg |
| 200 cm | 21.5 kg |
| 250 cm | 25.65 kg |
| 300 cm | 30 kg |
Other length can be custom on request.
Application:
The Custom Lighting Truss is widely used for Truss Beam, Roof Truss Support Beam, Truss Beam Bridge, I Beam Roof Trusses.
