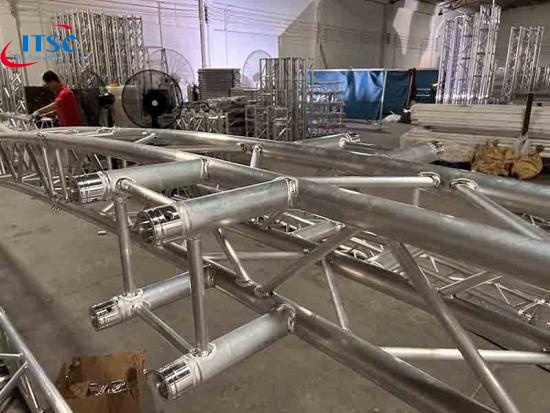

290x290mm Arc Box Truss Beam With 2 Connections for Arc Roof Installation:
This Arc Box Truss Corner is one of the custom Truss Box Corners for the ITSC-CS29 curved roof arc truss. It offers optimum flexibility to complete your special truss structures requirements.
Features:
- Lght weight and quick to install.
- Modular and fotproof assembly.
- Powder coating or anodizing to be any color on request.
- Special design for architecture structure.
- TUV and SGS certificates.
Specification:

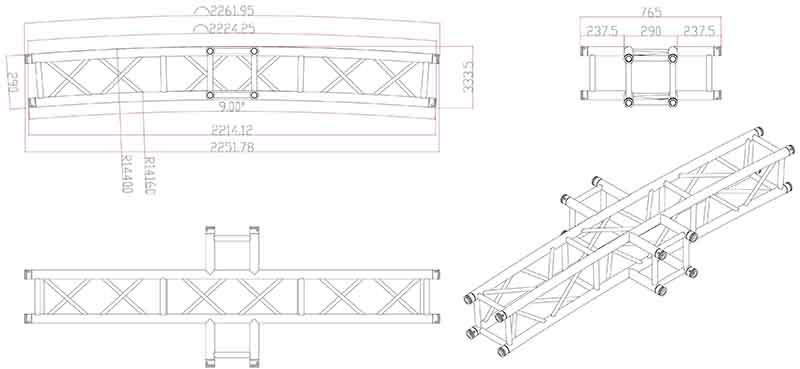

Item | 290x290mm custom 2 way truss corner for curved truss roof arch |
Material | Aluminum Alloy 6061-T 6 / 6082-T 6 |
Types | Square Truss |
Main tubes | 50 x 3 mm |
Braces | 25 x 2 mm |
Connection type | Conical couple system |
Dimensions | 30x800x2300mm |
Self-weight | 30kg |
Transportation volume | 0.5m3 |
HS code |
7610900000 |
