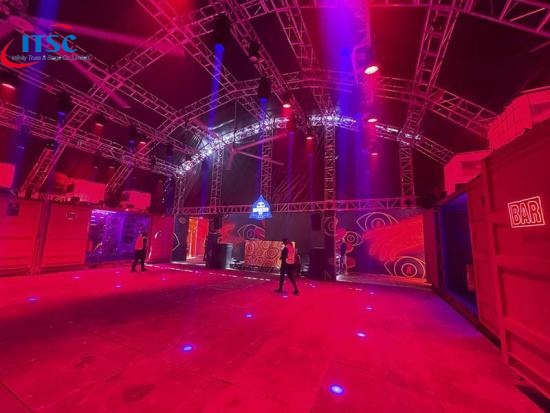

60x40ft Aluminum Truss Tunnel Roof For Outdoor Governor Ball:
This 60x40ft Lighting Truss Tunnel Roof is designed and set up on the containers for outdoor balls evens, and its main rigging is 400x400mm box truss system by ITSCtruss.
Features:
- Just install the system with your standard ITSC-BS40 in stock.
- Bolt connection and be easy to find the bolt and nuts any where.
- Coating power to be black is available.
- TUV and SGS certificates.

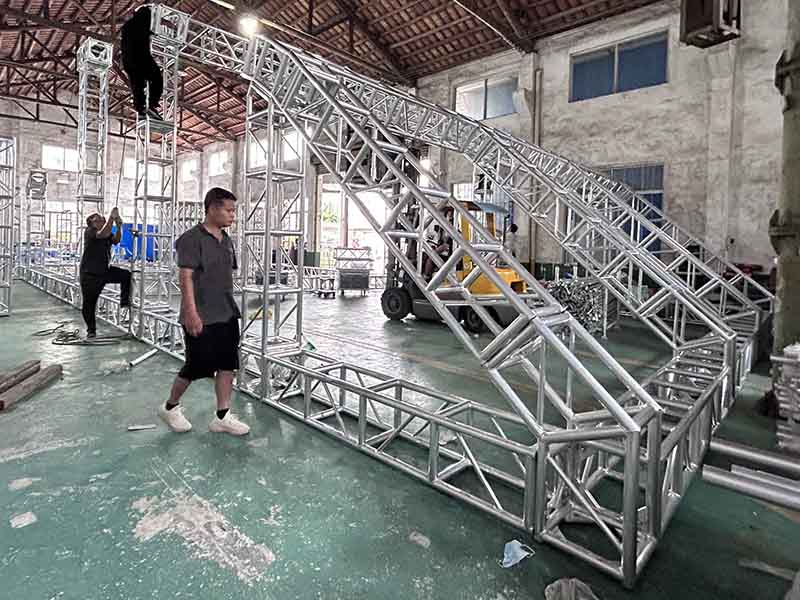

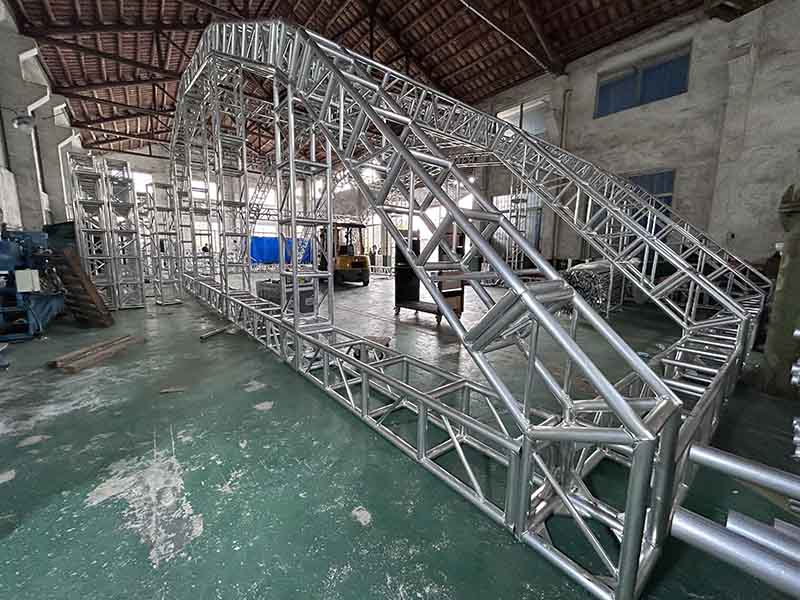

Truss Roof System tested in factory before delivery.

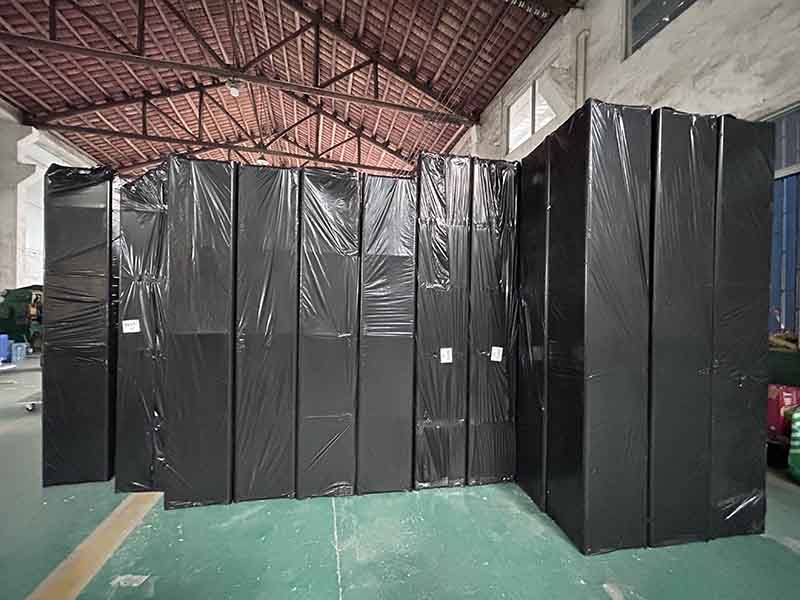

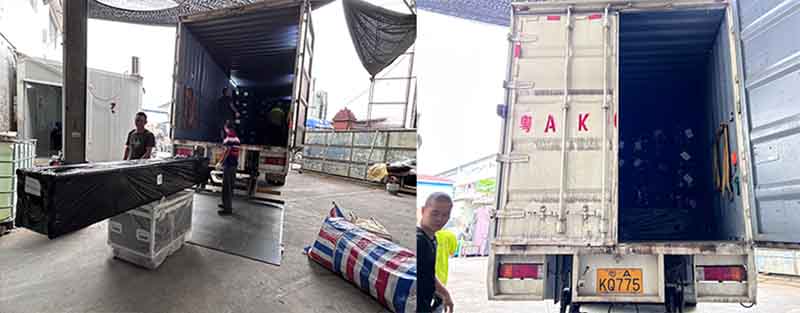

Alll the Lighting Truss Component are packed in black for deliver by air to USA in May 2024.
Specification:
Item | 60x40ft heavy duty truss Tunnel roof system |
Main grid | 400x400mm square truss |
Dimensions | 60x40ft |
Loading capacity | 4500kg |
Total weight | Approx. 2950kg |
Transporation volume |
47m3 |
Max. wind speed | 28m/s |
HS code |
761090000 |
Application:
- Governor ball events.
- Festival decoration in public.
- Theatre shows, musicals and operas.
- Concerts, festivals and fairgrounds.
- Exhibitions and trade shows.
- Celebrations and parties.
- Conventions and larg-scale meetings.

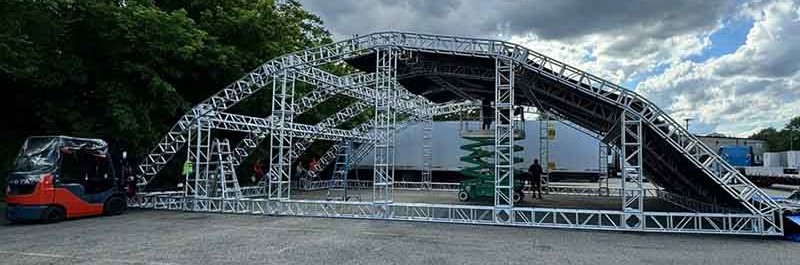

Tunnel Truss Roof installation in USA.

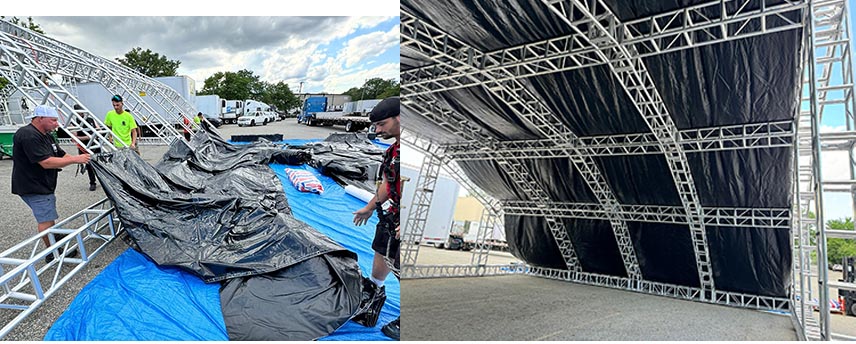

Cover the PVC on the top finaliy with the help of the hydraulic platforms.

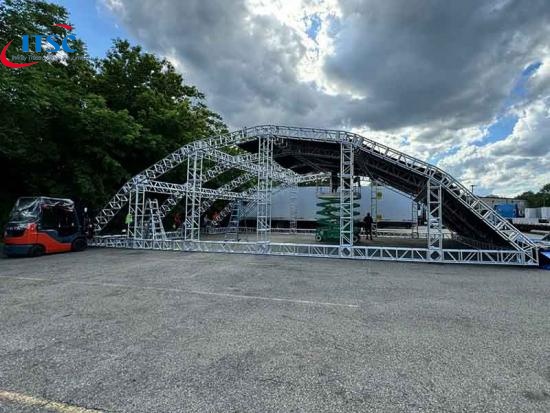

With lifting platfomr car machines, you can lift the whole tunel truss roof system onto the container systems and hand ligthing.

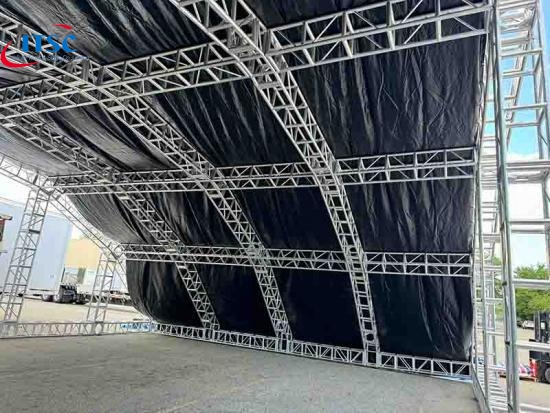

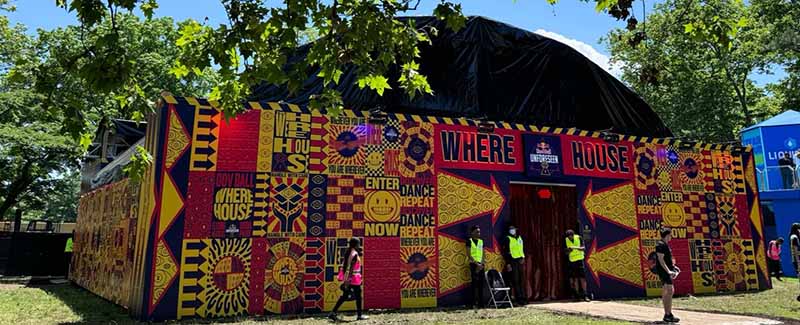

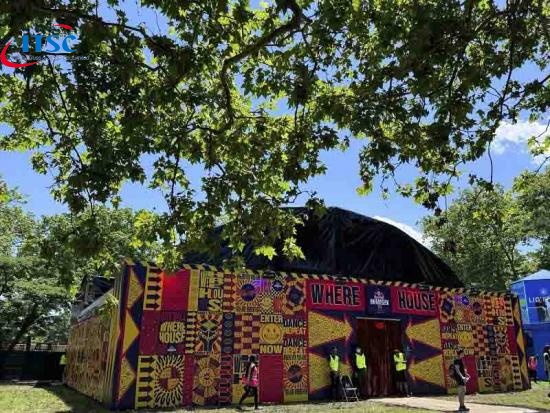

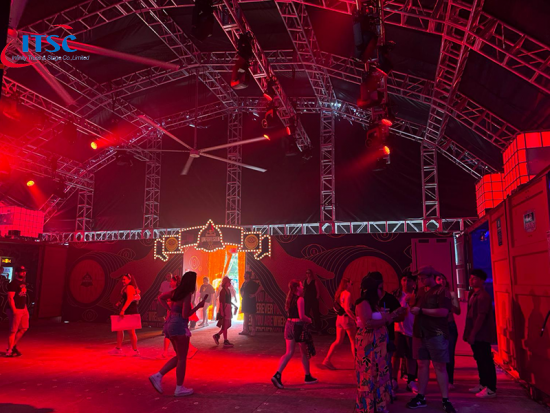

Finaliy, the whole aluminum tunnel roof system are set up successfully together with other banners and posts and ready for events.
