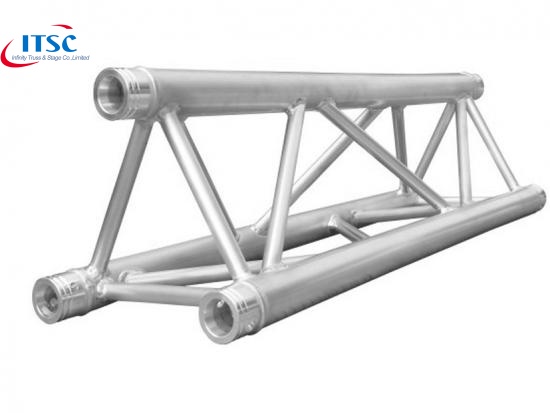

290mm Aluminum Lightweight Tri Triangular Lighting Truss Column:

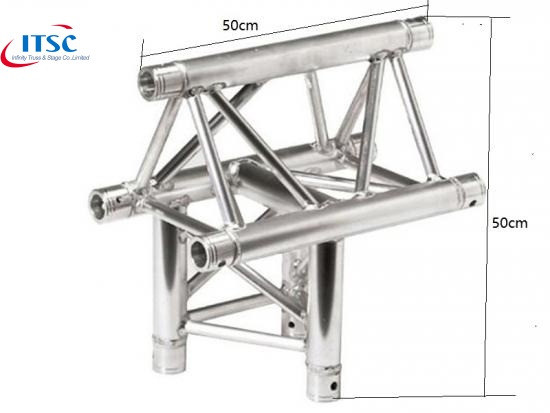

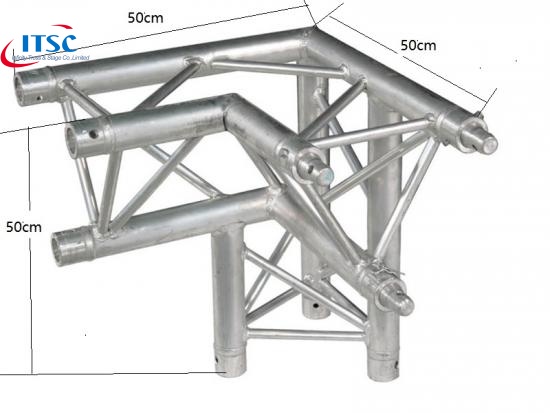

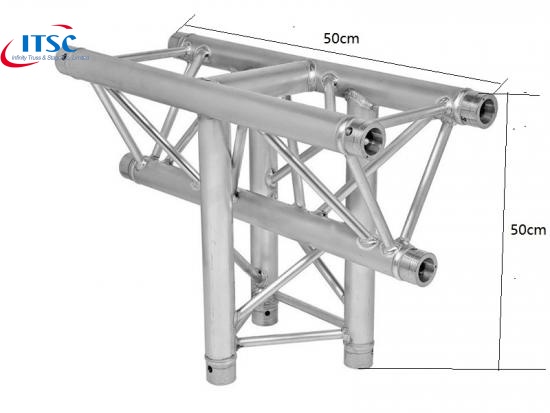

This Tri Light Truss offers a Longer Span and heavier lifting capacity compared with ITSC-CL29 Ladder Truss It can be customized to be curved and circular on request. When combined with its related blocks and different corners, it can be installed to be all kinds of Architecture Structure for decoration and rexhibition booths.

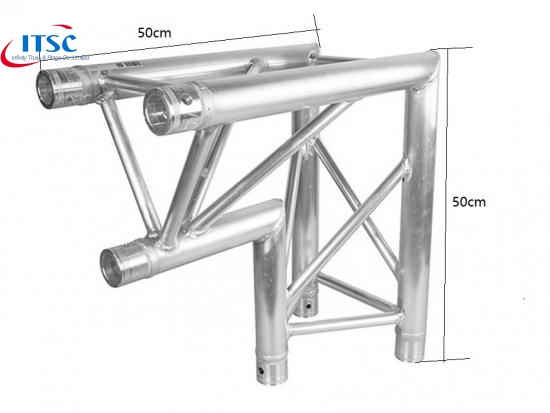

Dimension drawing:
Below is the free dimension drawing for this Tri Light Truss Column.
Features:
- Long Span and heavy capacity.
- lower volume to transport.
- And requirement free design available.
- Powder coating or anodizing to be any color on request.
- Factory price only.
Specification:
| Item |
290x290mm spigoted triangular truss |
| Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
| Dimensions | 290 x 290 mm |
| Types | Triangular |
| Main tubes | 50 x 3 mm |
| Braces | 25 x 2 mm |
| Connection type | Conical couple system |
| HS code |
7610900000 |
Length and Weight:
| Length | Weight |
| 50 cm | 3.5 kg |
| 100 cm | 5.8 kg |
| 150 cm | 8.1 kg |
| 200 cm | 9.5 kg |
| 250 cm | 11.2 kg |
| 300 cm | 12.9 kg |
Other length can be custom on request.
Application:
This Aluminum Triangle truss is commonly applied in architecture decoration structure, exhibition booths, gantry, ed.
Problems:
It will fail to install the Truss Ground Support due to its triangle shape.
