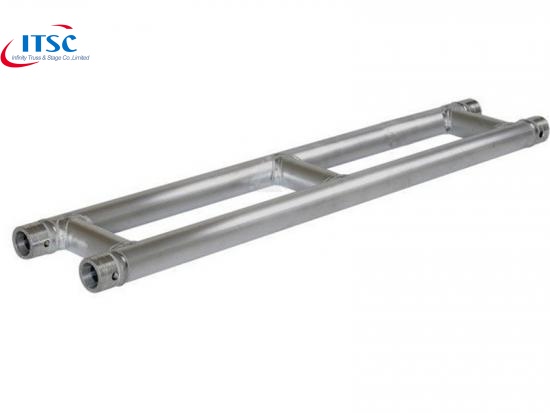

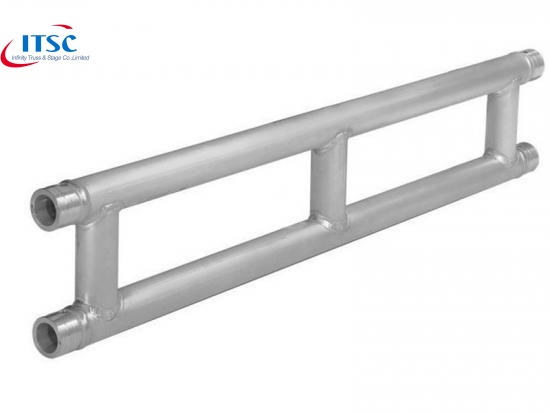

Aluminum Single I ladder Beam Truss 50 x 250mm for sale:
This i Ladder Beam Truss is made from aluminum alloy and it is most Lightweight as i beam . With conical couple system it is very easy to install. It can be assembled in vertical or horizontal position . It can be straight, curved and circular and usually adapted for truss to truss connection.
Features:
- Quick and easy to install.
- Modular and versatile for roof reinforcement and hire.
- Powder coating or anodizing to be any color on request.
- Free design by us.
- Lightweight for ladder framing between trusses or ending truss ladder construction.
Specification:
| Item | 50x250mm SpigotedI beam Ladder truss |
| Material | Aluminum Alloy 6061-T 6 / 6082-T 6 |
| Types | Ladder |
| Dimension | 50x250mm |
| Main tubes | 50 x 3 mm |
| Braces | 50 x 2 mm |
| Connection type | Conical couple system |
Length and Weight:
| Length | Weight |
| 50 cm | 1.6 kg |
| 100 cm | 3.1 kg |
| 150 cm | 4.85 kg |
| 200 cm | 5.6 kg |
| 250 cm | 6.5 kg |
| 300 cm | 9.3 kg |
Other length can be custom on request.
Application:
This I Beam Ladder is without any diagonal bracing and with rigid joints both on the top and bottom main tubes. It is designed to create matrix frames for some special circumstances, such as the Studio installation, Shopping mall ceiling decoration, connecting trusses between roof systems,ect.
