350mm Box Lighting Truss For Stage Roof Pillars

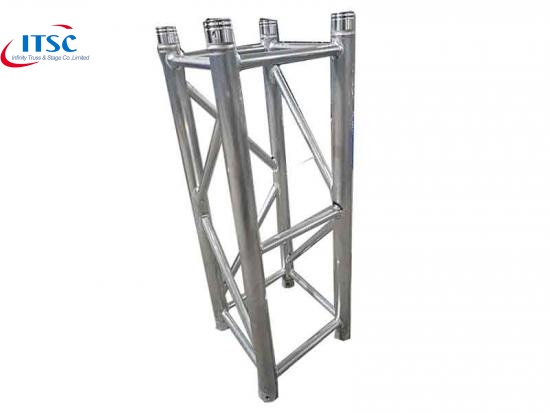

ITSC-CS35 Spigoted Lighting Box Truss is configurated with main tube 50x3mm, and bracing 25x2mm. It is featured with one side ladder for easier climbing while seting up the stage roof system in all kinds concerts stages, exhibitions, tents, events, and other complex structures like displays or booths.
Features:
- 4- point nodding.
- TUV and SGS approved.
- Free design and technology support.
- OEM and ODM acceptable.
- Powder coating and anodizing to any color without any peeling.
- Global standard size and most widely used in performance.
- Spigoted connection for cheaper price.
Specification:
Item | 350x350mm spigoted lighting truss |
Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
Types | Square |
Main tubes | 50 x 3 mm |
Braces | 25 x 2 mm |
Connection type | Conical spigoted pin connection |
HS code |
7610900000 |

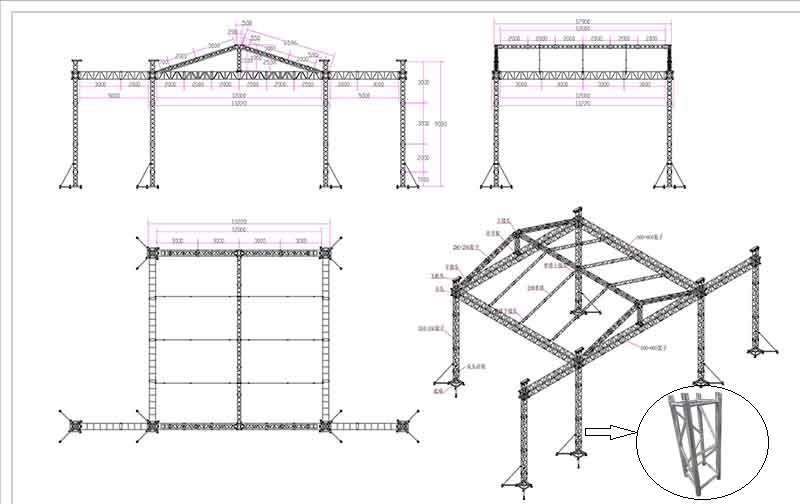

This Custom Lighting Truss is usually applied as pillars for stage roofs.
Length and Weight:
Length | Weight |
50 cm | 3.9 kg |
100 cm | 7.9 kg |
150 cm | 10.99 kg |
200 cm | 14.1 kg |
250 cm | 17.19 kg |
300 cm | 20.29 kg |
Other length can be custom on request.
Application:
This Lighting Truss with One Ladder is widely used for concert stage hire, decorations, car shows, exhibitions booths, churches, world cup events, studio, grid, stage rigging lighting, stage rooftop, ect.
