12x12 Aluminium Grid Box Truss Bolted Cheap Price from ITSCtruss Factory:

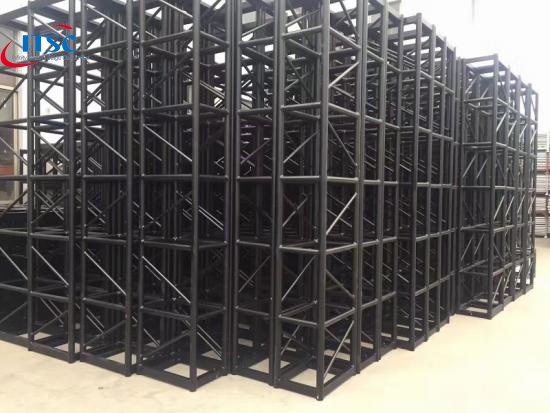

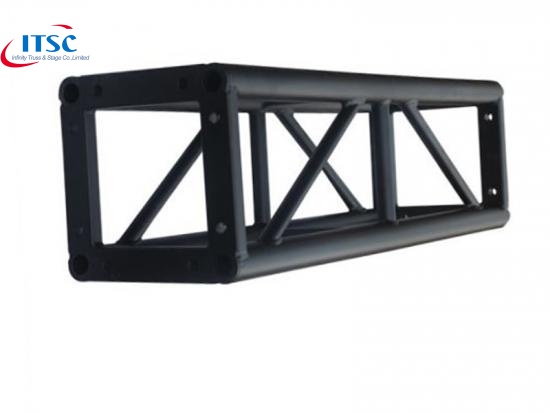

This 12 Inch Black Box Truss Kit is Light-Duty segment with main-tube 50 x 3 mm, sub-main tube 30 x 2 mm, bracing 25 x 2 mm. Its Centre Point Load Capacity is 550kg at 10m span. And it offers an optimum lifting capacity and indicates the practical versatile in all kinds Ground Support Truss Systems for concerts, exhibitions, tents, events, and other complex structures like displays or booths.
Features:
- 4- point nodding.
- TUV and SGS approved.
- Free design and technology support.
- OEM and ODM acceptable.
- Powder coating and anodizing to any color without any peeling.
Specification:
| Item |
12x12 in black box truss |
| Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
| Types | Square |
| Main tubes | 50 x 3 mm |
| Sub-main tubes | 30 x 2 mm |
| Braces | 25 x 2 mm |
| Connection type | Bolt |
Length and Weight:
| Length | Weight |
| 50 cm | 5.08 kg |
| 100 cm | 8.05 kg |
| 150 cm | 11.02 kg |
| 200 cm | 14 kg |
| 250 cm | 16.97 kg |
| 300 cm | 20 kg |
Other length can be custom on request.
Application:
This Black Box Truss 12 X 12 Inches is widely used for Roof, hire, decorations, car shows, exhibitions booths, churches, world cup events, ect.
