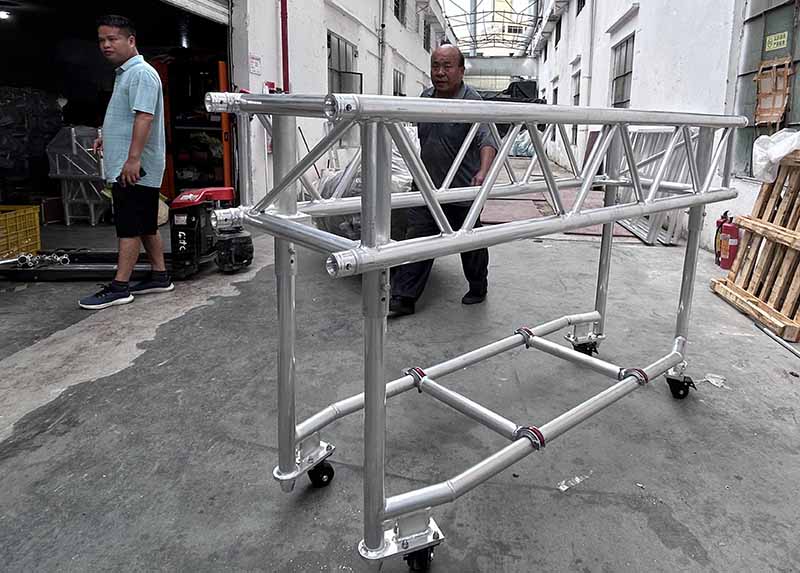

2M High Quality Pre Rig Truss Kit Equipment for Moving Heads：
This Pre Rig Truss Equipment is custom to be 2m longh and the legs are removable.With wheels under the trusses, it is easy to storage and transport the whole lighting truss and fixtures.
Features:
- Pre-Rigged lighting inside the trusses before moving to revenues.
- Delicated" fork system available in 90° Fixed, 90° Steps Rotating or 360° Continuous Rotation.
- Natural and any custom colour available on request.
- TUV/SGS certificates.
- Easy to move and save trucking space.
Specification:
| Items | 2m Custom Pre Rig Truss Kit |
| Material | En AW 6061-T6 |
| Main tube | 50x3mm |
| Braces | 50x3mm/ 25x3mm |
| Coupling systems | Rotatable pin/ fork |
| Max. span | 20m |

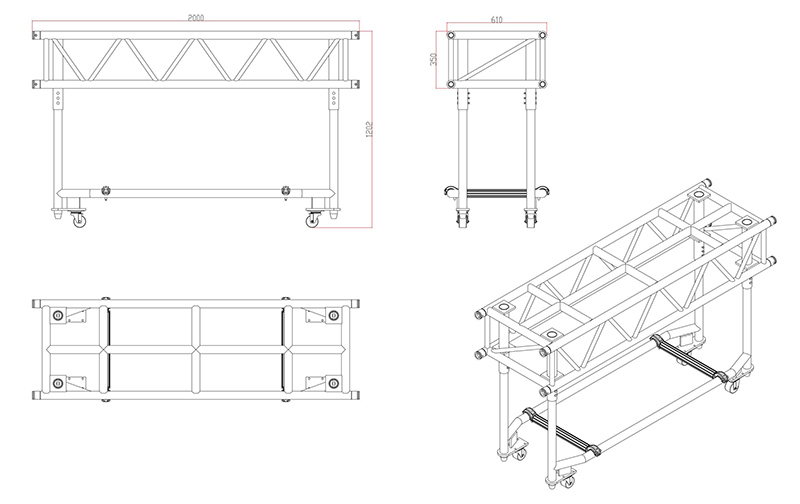

| Dimentions | 610x350x1202mm |
| Transportation volume | Approx.0.3m3 |
| Self-weight | 33kg |
| Other fixed length available | 1.22m (4ft), 2.44m (8ft), 3m (10ft), other custom length available |
| HS code | 7610900000 |
Loading capacity:
| Span(m)/ Top centre chord loading | UDL(kg/m) |
| 4 | 412 |
| 5 | 411 |
| 6 | 411 |
| 7 | 361 |
| 8 | 275 |
| 9 | 214 |
| 10 | 171 |
| 11 | 138 |
| 12 | 114 |
| 13 | 94 |
| 14 | 80 |
| 15 | 67 |
| 16 | 57 |
| 17 | 49 |
| 18 | 42 |
| 19 | 36 |
| 20 | 31 |
| 21 | 27 |
| 22 | 23 |
| 23 | 20 |
| 24 | 17 |
