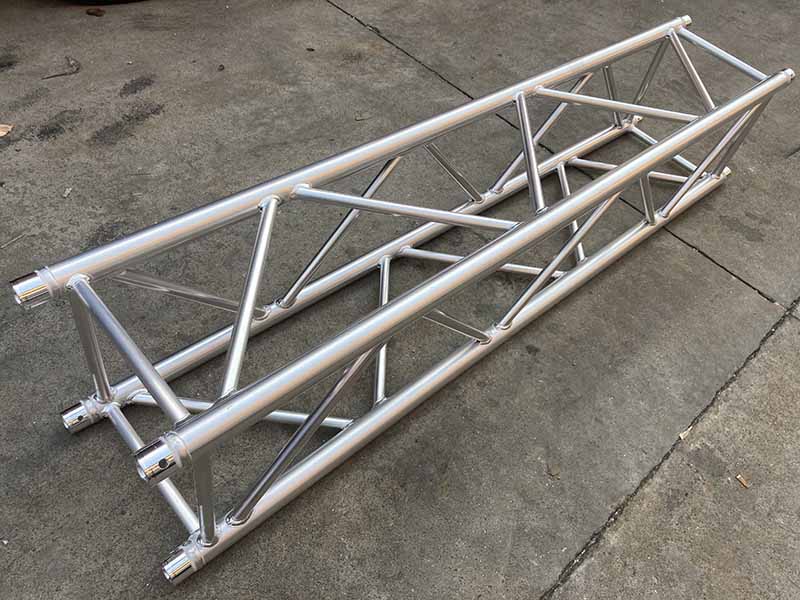

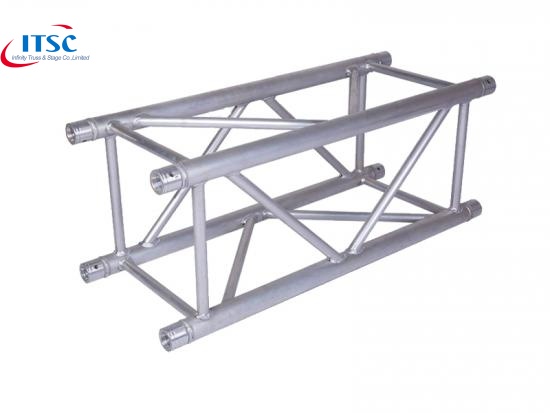

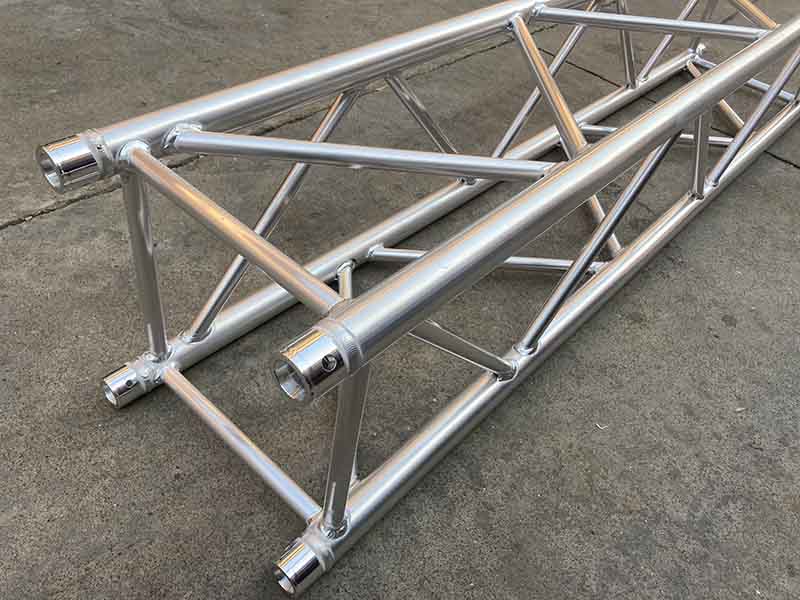

390 Portable Spigot Lighted Square Truss Section:
Square Truss Lighting offers an optimum lifting capacity and indicates the practical versatile in all kinds Ground Support Truss Systems for concerts stages, exhibitions, tents, events, and other complex structures like displays or booths.
Features:
- 4- point nodding.
- TUV and SGS approved.
- Free design and technology support.
- OEM and ODM acceptable.
- Powder coating and anodizing to any color without any peeling.
Specification:
| Item | 390X390mm spigoted box truss |
| Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
| Types | Square |
| Main tubes | 50 x 3 mm |
| Sub-Main tube | 30 x 2 mm |
| Braces | 25 x 2 mm |
| Connection type | Conical couple system |
| HS code |
7610900000 |

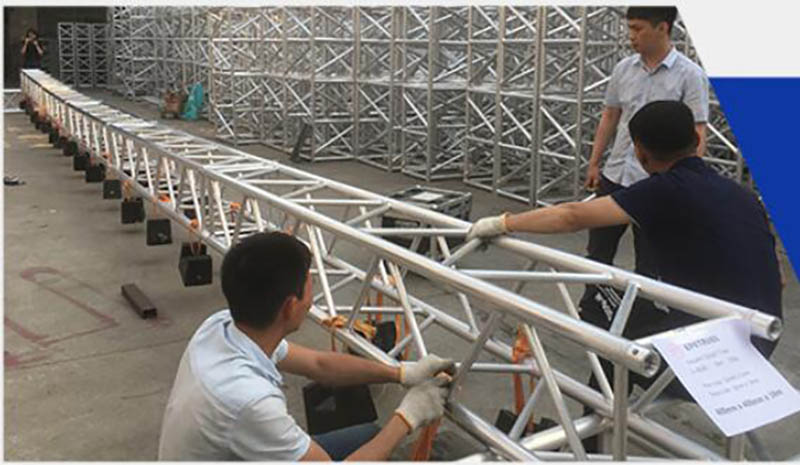

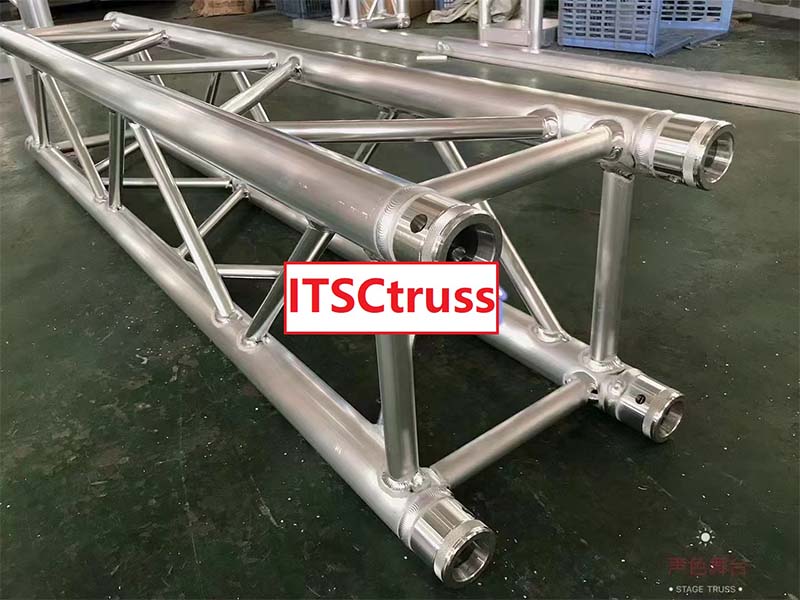

High quality welding on the trusses:
High quality welding is available for ITSC truss, due to the reasons that our workers are skillful and with more than 10 years experience on welding truss.
Length and Weight:
| Length | Weight |
| 50 cm | 5.25 kg |
| 100 cm | 8.5 kg |
| 150 cm | 13.75 kg |
| 200 cm | 15 kg |
| 250 cm | 16.25 kg |
| 300 cm | 22 kg |
Other length can be custom on request.
Application:
Stage Square Truss is widely used for concert stage hire, decorations, car shows, exhibitions booths, churches, world cup events, ect.
