Flat Roof Truss Stae System Description:

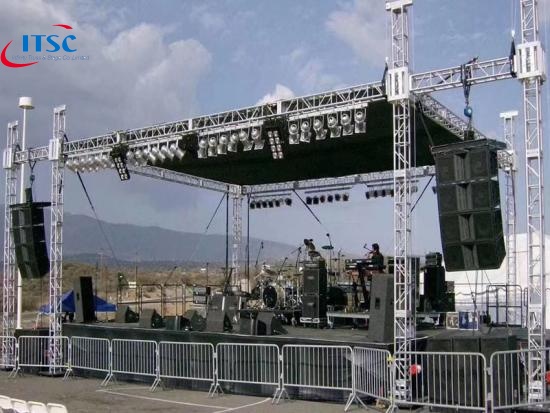

This 20x20ft Flat Foof Stage Truss is based on Standard Truss ITSC-CS29 as beam and pillars. It is extended from Box Truss 20x20ft with additional aluminum tubes on the tops for PVC cover. It is modular and versatile. It is quick and easy to assemble, saving building time and labour cost. Besides, you can also extend it to be Pyramid roof, Arc Roof,ect.
Features:
- Just install the system with your standard ITSC-CS29 in stock.
- Spigot connection make your installation much easier and quicker.
- Coating power to be black is available.
- TUV and SGS certificate.
Specification:
Towers | 290x290mm Spigot truss |
Main grid | 290x290mm medium duty truss |
Dimensions | 20x20ft |
Loading capacity | 1600kg |
Total weight | 750kg |
Transporation volume |
8m3 |
Max. wind speed | 27m/s |
HS code |
7610900000 |
Application:
- Product presentations.
- Theatre shows, musicals and operas.
- Concerts, festivals and fairgrounds.
- Exhibitioins and trade shows.
- Celebrations and parties.
- Conventions and larg-scale meetings.
